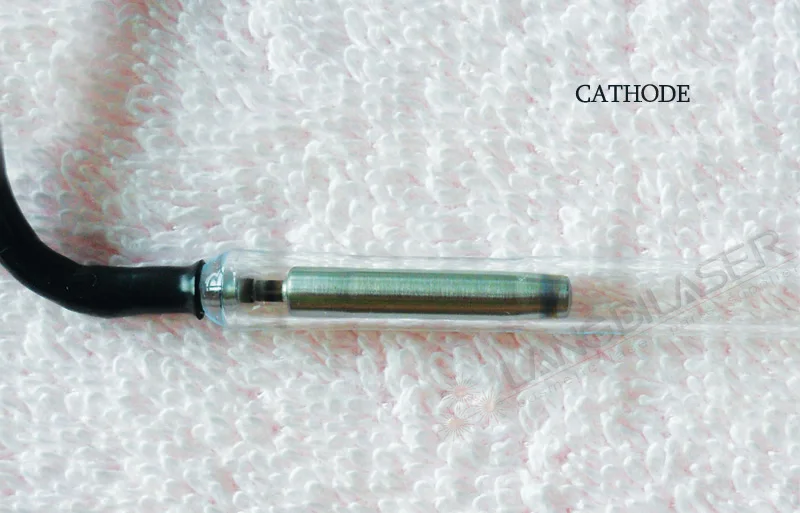

ipl lamp size 130*65*7(BL*AL*OD)-wire (3 pieces order) lamp code F985 made in UK

Model : SHR lamp 7*65*130F (wire) – Quality A+

Lamp’s bore (ID)=5mm

Lamp’s Outside dia.(OD) =7mm *

Lamp’s Arc length (AL) =65±1.5mm *

Lamp’s Body length(BL) =130±2mm *

O-ring centre (OC) =114mm

Pole dia. (PD) =2mm

Overall length (OAL)=450mm

Wire length (WL) = 160mm

Envelope material

CDQ(cerium doped quartz)

Gas fill

Xe (xenon)

press=0.5~1.5Mpa / 450 Torrs

Cooling type

flowing water

Operating type

pulse

Connector type

wire

Parameters

maximum average power=2,044W

maximum peak current =800A

operating voltage = 1,750V(max)

operating voltage =600V(min)

minimum trigger voltage =16KV

minimum trigger pulse=0.4μs

impedance constant= 17.16 Ko(Ω.A)

explosion energy constant = 79,820 (W./S)



Lamp’s Code Explaining



IPL lamp : lamp for intense pulsed light (IPL) machine / E-light / Elos / OPT / etc

YAG lamp : lamp for Q-switched Nd:YAG laser / tattoo removal machine / long pulse Nd: YAG laser / etc

ID* : lamp’s bore / lamp’s inside diameter

OD* : lamp’s outer diameter / quartz tube’s diameter

AL* : lamp’s arc length

BL* : lamp’s Body length / quartz tube’s length

OC : O – ring centre

PD : lamp’s pole diameter

PL : lamp’s pole length

OAL : lamp’s Overall length = BL+2WL / BL+2PL

WL: lamp’s wire length

WD: lamp’s wire diameter

F : lamp cooling by flowing water

A : lamp cooling by air

Supplying to main laser manufacturers as below :

A : ABC laser / ADSS / Anchorfree / Apolo

B: BL Beauty / BIO

C: C&G

D: DYM Laser

E: East beauty

F: Forever

G: Gabriel / GLM / Globalipl / Gloden / Gols / GSD / GTO

H: Hems / Honkonlaser / HK-MBL / Hongtailaser / Huafei / Huamei / HK MEIDI / HIMKEY

I: IBO

J: Jimy / Joyee / JCXY

K: Kiers

L: Langdai / Langjun /Landilaser

N: Noble / Renguangweiye / Ruipu

S: Senma / Shijizhangfang / Sincoheren /

T: Toplaser / T&B / T-one

V: Vanoo / VCA / VISCO

Y: Yagelaser

Z: Zohonice

Enough lamps in stock for supplying :
